LC75386NE

Features: • On-chip buffer amplifiers minimize the number of external components required.• The low level of switching noise generated from internal switches due to fabrication in a CMOS process minimizes switching noise when no input signals are present.• The use of built-in zer...

product image

LC75386NE Picture
See larger image
SeekIC No. : 004392074 Detail

LC75386NE: Features: • On-chip buffer amplifiers minimize the number of external components required.• The low level of switching noise generated from internal switches due to fabrication in a CMOS...

LC75386NE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC75386NE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• On-chip buffer amplifiers minimize the number of external components required.
• The low level of switching noise generated from internal switches due to fabrication in a CMOS process minimizes switching noise when no input signals are present.
• The use of built-in zero-cross switching circuits minimizes switching noise when input signals are present.
• Built-in VDD/2 reference voltage generation circuit
• All controls are controlled from CCB serial data input.


Pinout

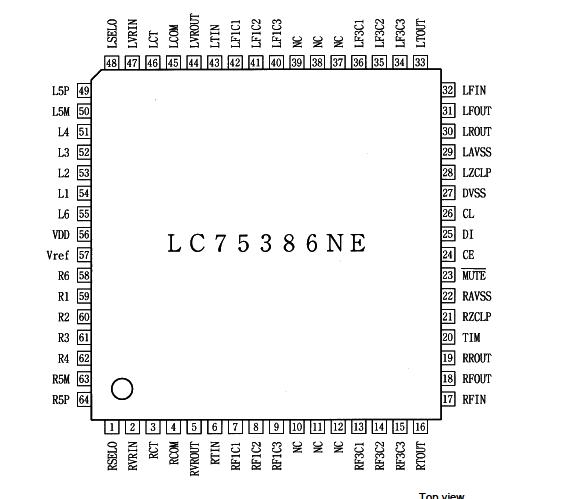

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VDD max
VDD
11
V
Maximum input voltage
VIN max
All input pins
VSS 0.3 to VDD + 0.3
V
Operating temperature
Topr
40 to +85
°C
Storage temperature
Tstg
50 to +125
°C



Description

The LC75386NE is an electronic volume and tone control IC that can implement a wide range of functions including volume, balance, fader, bass and treble controls, loudness, input switching, and input gain control with a minimal number of external components.
