LC75372E

Features: • Volume: Provides 81 positions, from 0 dB to 79 dB (in 1-dB steps) and . A balance function can be implemented by controlling the left and right channels independently.• Fader: This function can attenuate either the rear or the front outputs over 16 positions. (From 0 to 20 ...

product image

LC75372E Picture
See larger image
SeekIC No. : 004392068 Detail

LC75372E: Features: • Volume: Provides 81 positions, from 0 dB to 79 dB (in 1-dB steps) and . A balance function can be implemented by controlling the left and right channels independently.• Fader...

LC75372E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC75372E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Volume: Provides 81 positions, from 0 dB to 79 dB (in 1-dB steps) and . A balance function can be implemented by controlling the left and right channels independently.
• Fader: This function can attenuate either the rear or the front outputs over 16 positions. (From 0 to 20 dB in 2-dB steps, from 20 to 25 dB in one 5-dB step, from 25 to 45 dB in 10-dB steps, 60 dB, and .)
• Bass/treble: Forms an NF-type tone control circuit (LUX type) with the addition of external capacitors. The base and treble controls each have 15 positions.
• Loudness: The volume resistor ladders are tapped starting at the 20-dB position. A loudness function can be implemented by adding external RC circuits at these taps.
• The signal can be selected from one of three inputs for each of the left and right channels. The input signals can be amplified from 0 to +18 dB in 6-dB steps.
• On-chip buffer amplifiers for a minimum of external components.
• Minimal switching noise due to fabrication in a silicongate CMOS process.
• Built-in reference voltage generation circuit
• Serial data input: Supports CCB format communication with the system controller


Pinout

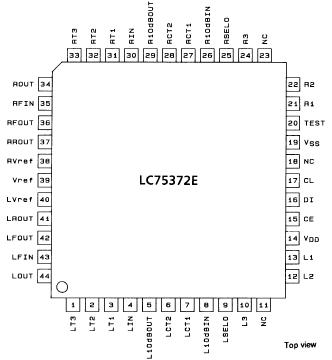

Connection Diagram


Specifications

Parameter Symbol Conditions
Ratings
 Unit
Maximum supply voltage VDDmax VDD
11
V
Maximum input voltage VIN max CL, DI, CE, LIN, RIN, LFIN, RFIN, L1 to L3, R1 to R3
VSS 0.3 to VDD + 0.3
V
Allowable power dissipation Pdmax Ta85°C

260
mW
Operating temperature Topr
40 to +85
Storage temperature Tstg
50 to +125



Description

The LC75372E is an electronic volume control that can implement volume, balance, fader, bass/treble, loudness,input switching, and input level control functions with a minimal number of external components.
