LC75343M

Features: • On-chip buffer amplifier cuts down number of external components• Low switching noise generated by on-chip switch due to use of silicon gate CMOS process• On-chip reference voltage circuit for analog ground• Controls performed with serial data input (CCB)PinoutS...

product image

LC75343M Picture
See larger image
SeekIC No. : 004392057 Detail

LC75343M: Features: • On-chip buffer amplifier cuts down number of external components• Low switching noise generated by on-chip switch due to use of silicon gate CMOS process• On-chip refer...

LC75343M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC75343M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• On-chip buffer amplifier cuts down number of external components
• Low switching noise generated by on-chip switch due to use of silicon gate CMOS process
• On-chip reference voltage circuit for analog ground
• Controls performed with serial data input (CCB)


Pinout

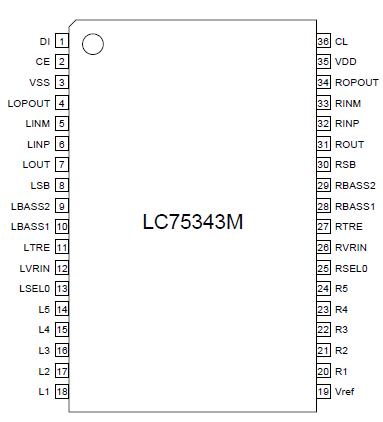

Connection Diagram


Specifications

Parameter Symbol Pin Name Conditions
Ratings
Unit
Maximum supply voltage VDDmax VDD
10.5
V
Maximum input voltage VIN max CE, DI, C
0.3 to +10.5
V
L1 to L5, R1 to R5,
LVRIN, RVRIN, LINP,
RINP, LINM,RINM
VSS 0.3 to VDD + 0.3
Allowable power dissipation Pdmax   Ta75°C, independent IC 520
mW
Operating temperature Topr
30 to +75
Storage temperature Tstg
40 to +125



Description

The LC75343M is an electronic volume system that can control the volume, balance, 2-band equalizer, super bass, and input switching functions by serial data input.
