Product Details

Description



Features:

• This LSI, in conjunction with a control microprocessor, can implement in two chips, an electronic graphic equalizer with the following features.
- One touch gain control for each band
- One touch memory setting recall allows users to select desired frequency characteristics for each track.
- Since the LC7527E includes band filter amplifiers on chip, capacitors are the only external components required in application systems.
- Minimal switching noise due to the use of a Silicon gate CMOS process.

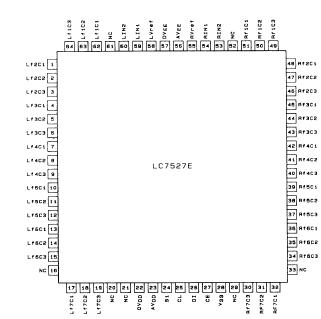

Pinout

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VDD-VEE max
AVDD, AVEE, DVDD, DVEE*
12
V
Maximum input voltage
VIN max1
CL, DI, CE
VSS 0.3 to VDD + 0.3
V
VIN max2
LIN1, LIN2, RIN1, RIN2
VSS 0.3 to VDD + 0.3
V
VIN max3
S1
VSS 0.3 to VDD + 0.3
V
Allowable power dissipation
Pd max
Ta 85°C
280
mW
Operating temperature
Topr
40 to +85
°C
Storage temperature
Tstg
50 to +125
°C
