LC74789JM

Features: • Display format: 24 characters by 12 rows (Up to 288 characters)• Character format: 12 (horizontal) ´ 18 (vertical) dots• Character sizes: Three sizes each in the horizontal and vertical directions• Characters in font: 256 (254 characters, one spacing chara...

product image

LC74789JM Picture
See larger image
SeekIC No. : 004392022 Detail

LC74789JM: Features: • Display format: 24 characters by 12 rows (Up to 288 characters)• Character format: 12 (horizontal) ´ 18 (vertical) dots• Character sizes: Three sizes each in the ...

LC74789JM Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC74789JM
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Display format: 24 characters by 12 rows (Up to 288 characters)
• Character format: 12 (horizontal) ´ 18 (vertical) dots
• Character sizes: Three sizes each in the horizontal and vertical directions
• Characters in font: 256 (254 characters, one spacing character, and one transparent spacing character)
• Initial display positions: 64 horizontal positions and 64 vertical positions
• Blinking: Specifiable in character units
• Blinking types: Two periods supported: About 1.0 second and about 0.5 second
• Blanking: Over the whole font (12 ´ 18 dots)
• Background color: 8 colors (internal synchronization mode): 2fSC and 4fSC
• Line background color
- Can be set for 3 lines
- Line background color: 8 colors (internal synchronization mode): 2fSC and 4fSC
• External control input: 8-bit serial input format
• On-chip sync separator circuit
• Video outputs: NTSC, PAL, PAL-N, PAL-M, NTSC 4.43, and PAL60 format composite video outputs
• Package
- 24-pin plastic DIP-24S (300 mil)
- 24-pin plastic MFP-24 (375 mil)
- 24-pin plastic MFP-24S (300 mil)




Pinout

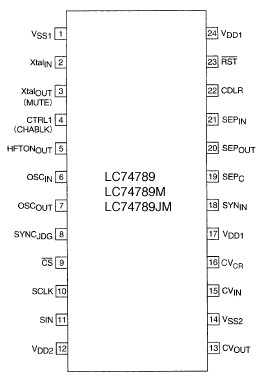

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VDD max
 VDD1 and VDD2
VSS0.3 to VSS+6.5
V
Maximum input voltage
VIN max
All input pins
VSS0.3 to VDD+0.3
V
Maximum output voltage
VOUT max
 HFTONOUT, SYNCJDG, and SEPOUT
VSS0.3 to VDD+0.3
V
Allowable power dissipation
Pd max
Ta = 25°C
350
mW
Operating temperature
Topr
30 to +70
°C
Storage temperature
Tstg
40 to +125
°C
