Product Details

Description

Pinout

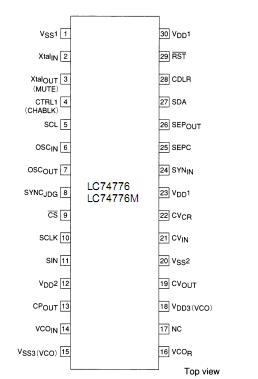

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	V_DD max	V_DD1, V_DD2, and V_DD3	VSS 0.3 to V_SS + 6.5	V
Maximum input voltage	V_IN max	All input pins	V_SS 0.3 to V_DD1 + 0.3	V
Maximum output voltage	V_OUT max	SDA, SYNCJDG, and SEPOUT	V_SS 0.3 to V_DD1 + 0.3	V
Allowable power dissipation	P_d max	Ta = 25°C	350	mW
Operating temperature	T_opr		30 to +70
Storage temperature	T_stg		40 to +125
