Features:

• Screen format: 12 lines ¥ 24 characters (up to 288characters)
• Number of characters displayed: Up to 288 characters
• Character format: 12 (horizontal) * 18 (vertical) dots
• Number of characters in font: 256 characters
• Character sizes: Normal and double, specified in lineunits
• Display start position
- Horizontal: 64 positions
- Vertical: 64 positions
• Character reverse video function: Individual characterscan be displayed in reverse video.
• Types of blinking: Two types with periods of 1.0 and
0.5 seconds, specifiable on a per character basis.(Blinking has a 60% display on duty.)(Four divisors: 1/25, 1/30, 1/50, 1/60)
• Outputs: R, G, B plus 2 output systemsOr: 4 output systems (character data and blanking data:4 outputs each)
• External control input: 8-bit serial data input format




Pinout

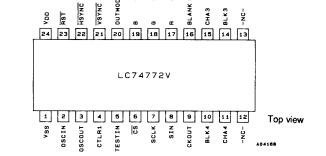

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Supply voltage VDD VDD VSS 0.3 to VSS + 7.0 V
Input voltage VIN All input pins VSS 0.3 to VDD + 0.3 V
Output voltage VOUT CKOUT, CHA4, BLK4, CHA3, BLK3, B, G, R, BLANK VSS 0.3 to VDD + 0.3 V
Allowable power dissipation Pd max Ta = 25°C 300 mW
Operating temperature Topr   30 to +70
Storage temperature Tstg   40 to +125
