LC74761_1228208

Features: • Display structure: 12 lines by 24 characters (up to 288characters)• Maximum character display: Up to 288 characters• Character configuration: 12 (W) by 18 (H) dots structure• Number of characters: 256 characters (254 plus space 1font and transparent space 1 font...

product image

LC74761_1228208 Picture
See larger image
SeekIC No. : 004391979 Detail

LC74761_1228208: Features: • Display structure: 12 lines by 24 characters (up to 288characters)• Maximum character display: Up to 288 characters• Character configuration: 12 (W) by 18 (H) dots stru...

LC74761_1228208 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC74761_1228208
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Display structure: 12 lines by 24 characters (up to 288characters)
• Maximum character display: Up to 288 characters
• Character configuration: 12 (W) by 18 (H) dots structure
• Number of characters: 256 characters (254 plus space 1font and transparent space 1 font)
• Character sizes: Three sizes (normal, double, and triplesizes)
• Display starting positions: 64 horizontal and 64 verticallocations
• Reverse video function: Characters can be inverted on aper character basis.
• Flashing types: Two types with periods of 0.5 and 1.0second on a per character basis (duty fixed at 50%)
• Background color: One of eight colors (when internalsynchronization used)
• External control input: Serial data input in 8-bit units
• Built-in horizontal/vertical sync separation circuit, AFCcircuit, and synchronization detector
• Video output: Composite video signal output in NTSC,PAL, PAL-M, PAL-N, PAL60, NTSC4.43, or SECAMformat


Pinout

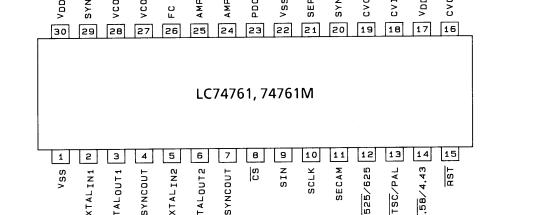

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VDD max VDD1, VDD2 pins VSS 0.3 to VSS + 7.0 V
Maximum input voltage VIN max All input pins VSS 0.3 to VDD + 0.3 V
Maximum output voltage VOUT max HSYNCOUT, VSYNCOUT,
SYNCDET pins		 VSS 0.3 to VDD + 0.3 V
Allowable power dissipation Pd max   300 mW
Operating temperature Topr   30 to +70
Storage temperature Tstg   40 to +125
