LC74725_1228197

Features: • Display format: 24 characters by 10 lines (up to240 characters)• Character format: 8 (horizontal) × 8 (vertical) dots(interpolation function provided)• Character sizes: Two horizontal and two vertical sizes• Characters in font: 64 characters• Initial displ...

product image

LC74725_1228197 Picture
See larger image
SeekIC No. : 004391968 Detail

LC74725_1228197: Features: • Display format: 24 characters by 10 lines (up to240 characters)• Character format: 8 (horizontal) × 8 (vertical) dots(interpolation function provided)• Character sizes:...

LC74725_1228197 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC74725_1228197
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Display format: 24 characters by 10 lines (up to240 characters)
• Character format: 8 (horizontal) × 8 (vertical) dots(interpolation function provided)
• Character sizes: Two horizontal and two vertical sizes
• Characters in font: 64 characters
• Initial display positions: 64 horizontal positions and64 vertical positions
• Blinking: Specifiable on a per-character basis
• Blinking types: Two periods, 1.0 second and 0.5 second
• Blue background screen display: Available in internalsynchronization mode
• External control input: 8-bit serial input format
• Built-in sync separator circuit
• EDS support
• Video outputs: Composite video signal output in either TSC or PAL-M
• Package: 24-pin plastic DIP (300 mil)
24-pin plastic MFP (375 mil)


Pinout

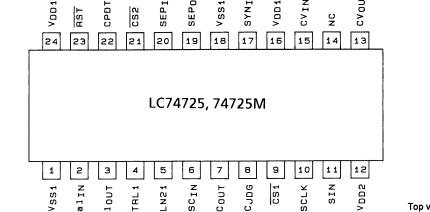

Connection Diagram


Specifications

</tab
Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VDD max VDD1, VDD2 VSS 0.3 to VSS + 7.0 V
Maximum input voltage VIN max All input pins VSS 0.3 to VDD + 0.3 V
Maximum output voltage VOUT max LN21, CPDT, SEPOUT, SYNCJDG VSS 0.3 to VDD + 0.3 V
Allowable power dissipation Pd max Ta = 25°C 350 mW
Operating temperature Topr   30 to +70
Storage temperature Tstg   40 to +125
