Features:

• Screen structure: 24 characters × 10 lines (up to 240characters)
• Character structure: 8 (horizontal) × 8 (vertical)(interpolation function supported)
• Character sizes: Two horizontal and two vertical sizes
• Number of characters: 64
• Display start position: 64 horizontal and 64 verticalpositions
• Blinking: In character units
• Blinking types: Two, with periods of 0.5 and 1.0 seconds
• Blue background screen display: (in internal synchro-nization mode)
• External control inputs: 8-bit serial input interface
• Built-in sync separator circuit
• Video output: Compound NTSC and PAL-M output
• Packages: 24-pin plastic MFP (375 mil)
24-pin plastic DIP (300 mil)




Pinout

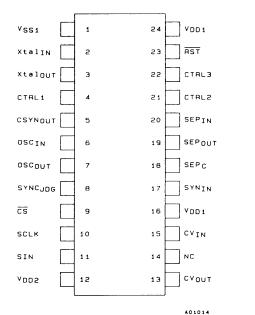

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VDD max VDD1, VDD2 VSS 0.3 to VSS + 7.0 V
Maximum input voltage VIN max All input pins VSS 0.3 to VDD + 0.3 V
Maximum output voltage VOUT max CSYNOUT, SYNCJDG, SEPOUT VSS 0.3 to VDD + 0.3 V
Allowable power dissipation Pd max Ta = 25°C 350 mW
Operating temperature Topr   30 to +70
Storage temperature Tstg   40 to +125
