LC72P366

Features: • 32 KB (16k words *16 bits) of on-chip PROM - This is a one-time programmable 32 KB (16k-word *16-bit) PROM.• Pin compatible with the mask ROM versions, i.e. identical package and pin assignment.PinoutSpecifications Parameter Symbo Conditions Ratings Unit ...

product image

LC72P366 Picture
See larger image
SeekIC No. : 004391921 Detail

LC72P366: Features: • 32 KB (16k words *16 bits) of on-chip PROM - This is a one-time programmable 32 KB (16k-word *16-bit) PROM.• Pin compatible with the mask ROM versions, i.e. identical package...

LC72P366 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC72P366
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 32 KB (16k words *16 bits) of on-chip PROM - This is a one-time programmable 32 KB (16k-word *16-bit) PROM.
• Pin compatible with the mask ROM versions, i.e. identical package and pin assignment.

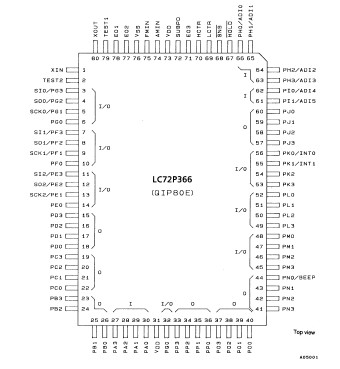

Pinout

Connection Diagram


Specifications

Parameter
Symbo
Conditions
Ratings
Unit
Maximum supply voltage
VDD max

0.3 to +6.5
V
Input voltage
VIN
 All input pins
0.3 to VDD +0.3
V
Output voltage
VOUT(1)
 Port J
0.3 to +15
V
VOUT(2)
 All output ports other than VOUT(1)
0.3 to VDD +0.3
V
Output current
IOUT(1)
 Port J
0 to +5
mA
IOUT(2)
 Ports D, E, F, G, K, L, M, N, O, P, and Q, EO1, EO2, EO3, SUBPD
0 to +3
mA
IOUT(3)
 Ports B and C
0 to +1
mA

Allowable power issipation

Pd max

 Ta = 30 to +70°C
400

mW

Operating temperature
Topr

30 to +70
°C
Storage temperaturel
Tstg

45 to +125
°C



Description

The LC72P366 is a single-chip PLL-plus-controller onetime programmable PROM microcontroller that corresponds to the Sanyo LC72358N, LC72362N, and LC72366. The LC72P366 has the same package and pin assignment as the LC72358N, LC72362N, and LC72366 mask ROM versions, and provides 32 KB of on-chip PROM, organized as 16k words by 16 bits. The LC72P366 can prove useful in reducing the startup times for initial production runs and for reducing the switchover time when end-product specifications change.
