Product Details

Description



Pinout

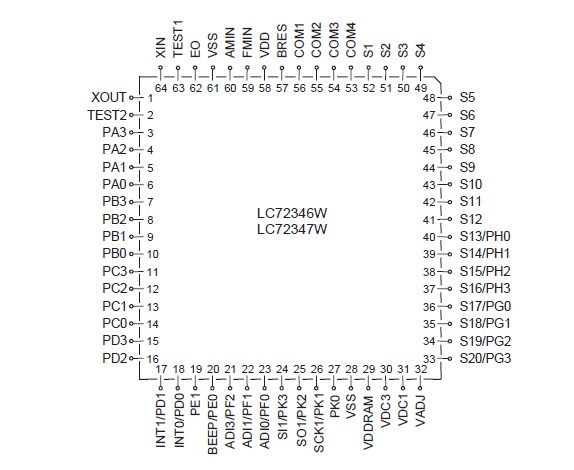

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit Unit
Maximum supply voltage VDD(1)max VDD 0.3 to +0.3 V
VDD(2)max VDD 0.3 to +4.0 V
VDD(3)max VDDRAM 0.3 to +4.0 V
VDD(4)max VDC3 0.3 to +4.0 V
Input voltage VIN(1) FMIN, AMIN 0.3 to VDD(3) to +0.3 V
VIN(2) PA, PC, PD, PG, and PH 0.3 to VDD(1) to +0.3 V
Output voltage VOUT(1) PE 0.3 to +15 V
VOUT(2) PB, PC, PD, PG, and PH 0.3 to VDD(1) +0.3 V
VOUT(3) VDC1, EO 0.3 to VDD(3) +0.3 V
VOUT(4) COM1 to COM4, S1 to S19 0.3 to VDD(4) +0.3 V
Output current IOUT(1) PC, PD, PG, PH, and EO 0 to 3 mA
IOUT(2) PB 0 to1 mA
IOUT(3) PE 0 to2 mA
IOUT(4) S1 to S20 300 A
IOUT(5) COM1 to COM4 3 mA
Allowable power dissipation Pdmax Ta = 20 to +70°C 100 mW
Operating temperature Topr   10 to +60 °C
Storage temperature Tstg   45 to +125 °C
