LC72338

Features: • High-speed programmable divider• Program memory (ROM)- LC72336: 6143 * 16 bits (12 kB)- LC72338: 8191 * 16 bits (16 kB)• Data memory (RAM): 512 * 4 bits• All instructions are one-word instructions• Cycle time: 1.33 s• Stack: 8 levels• LCD drive...

product image

LC72338 Picture
See larger image
SeekIC No. : 004391844 Detail

LC72338: Features: • High-speed programmable divider• Program memory (ROM)- LC72336: 6143 * 16 bits (12 kB)- LC72338: 8191 * 16 bits (16 kB)• Data memory (RAM): 512 * 4 bits• All inst...

LC72338 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC72338
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-speed programmable divider
• Program memory (ROM)
- LC72336: 6143 * 16 bits (12 kB)
- LC72338: 8191 * 16 bits (16 kB)
• Data memory (RAM): 512 * 4 bits
• All instructions are one-word instructions
• Cycle time: 1.33 s
• Stack: 8 levels
• LCD drivers: Up to 96 segments (1/3 duty, 1/3 bias)
• Serial I/O: Up to 3 channels (8-bit 3-wire type)
• External interrupts: 2 interrupts (INT0, INT1) Interrupt on rising or falling edge (selectable)
• Internal interrupts: 3 interrupt Two built-in timer interrupts and 1 serial I/O interrupt
• Nested interrupt levels: 4 levels
• D/A converter: 4 channels (8-bit PWM output)
• A/D converter: 4 channels (6-bit successive approximation)
• General-purpose ports:
- Input ports: 8
- Output ports: 12 (16 maximum)
- I/O ports: 8 (20 maximum, can be switched between input and output in bit units.)
• PLL block: Supports 4 types of dead zone control, and includes a built-in unlock detection circuit.
Supports 12 different reference frequencies.
• Universal counter: 20 bits (Can be used for either frequency or period measurement.)
• Timers: Eight types of time measurement
• Beep function: Six beep tones
• Reset: Built-in voltage detection type reset circuit
• Halt mode: Stops the controller operating clock.
• Operating supply voltage: 4.5 to 5.5 V (3.5 to 5.5 V if only the controller block operates.)

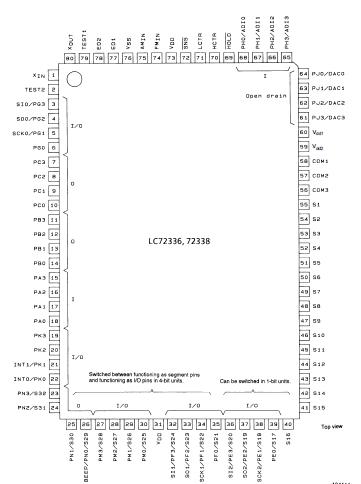

Pinout

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VDD max
0.3 to +6.5
V
Input voltage
VIN
All input pins
0.3 to VDD + 0.3
V
Output voltage
VOUT 1
 Port PJ
0.3 to +15
V
VOUT 2
All output ports other than VOUT (1)
0.3 to VDD + 0.3
V
Output current
IOUT 1
Port PJ
0 to +5
mA
IOUT 2
PE, PF, PG, PK, PM, PN, EO1, EO2
0 to +3
mA
IOUT 3
Ports PB and PC
0 to +1
mA
IOUT 4
S1 to S32
300
A
IOUT 5
COM1 to COM3
3
mA
Allowable power dissipation
Pd max
 Ta = 45 to 85°C
300
mW*
Operating temperature
Topr
-40to+85
°C
Storage temperature
Tstg
-45to+125
°C





Description

The LC72336 and LC72338 are single-chip microcontrollers for use in electronic tuners. These products include on chip a PLL circuit that can operate at up to 150 MHz and 1/3 duty LCD drivers. They feature a highly efficient instruction set and powerful hardware.
