LC72323

Features: • Stack: Eight levels• Fast programmable divider• General-purpose counters: HCTR for frequency measurement and LCTR for frequency or period measurement• LCD driver for displays with up to 56 segments (1/2 duty, 1/2 bias)• Program memory (ROM): 3 k words by 1...

product image

LC72323 Picture
See larger image
SeekIC No. : 004391833 Detail

LC72323: Features: • Stack: Eight levels• Fast programmable divider• General-purpose counters: HCTR for frequency measurement and LCTR for frequency or period measurement• LCD driver ...

LC72323 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC72323
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Stack: Eight levels
• Fast programmable divider
• General-purpose counters: HCTR for frequency measurement and LCTR for frequency or period measurement
• LCD driver for displays with up to 56 segments (1/2 duty, 1/2 bias)
• Program memory (ROM): 3 k words by 16 bits
• Data memory (RAM): 256 4-bit digits
• All instructions are single-word instructions
• Cycle time: 2.67 s, 13.33 s, or 40.00 s (option)
• Unlock FF: 0.55 s detection, 1.1 s detection
• Timer FF: 1 ms, 5ms, 25ms, 125ms
• Input ports*: One dedicated key input port and one high-breakdown voltage port
• Output ports*: Two dedicated key output ports, one high-breakdown voltage open-drain port Two CMOS output ports (of which one can be switched to be used as LCD driver outputs) Seven CMOS output ports (mask option switchable to use as LCD ports)
• I/O ports*: One switchable between input and output in four-bit units and one switchable between input and output in one-bit units

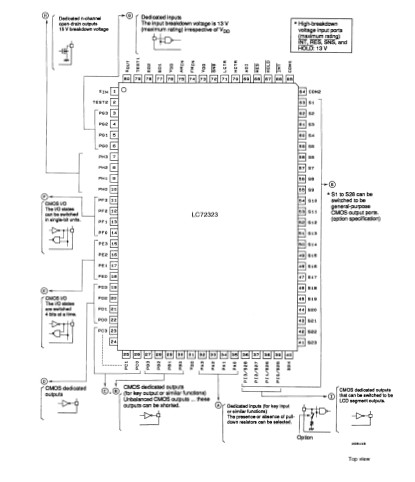

Pinout

Connection Diagram


Specifications

Parameter Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VDD max 0.3 to +6.5 V
Input voltage VIN1 HOLD, INT, RES, SNS, and the G port 0.3 to +13 V
VIN2 Inputs other than VIN1 0.3 to VDD + 0.3 V
Output voltage VOUT1 H port 0.3 to +15 V
VOUT2 Outputs other than VOUT1 0.3 to VDD + 0.3 V
Output current IOUT1 All D and H port pins 0 to 5 mA
IOUT2 All E and F port pins 0 to 3 mA
IOUT3 All B and C port pins 0 to1 mA
IOUT4 S1 to S28 and all I port pins 0 to 1 mA
Allowable power
dissipation		 Pd max Ta = 40 to +85°C 300* mW
Operating temperature Topg 40 to +85 °C
Storage temperature Tstg 45 to +125 °C
