LC66558B

Features: On-chip ROM and RAM with 6 k (or 8 k) byte and 512 * 4-bit capacities• The same instruction set (with 127 instructions) as the LC66000 Series (except that the SB instruction is notsupported)• I/O ports: 54 pins• 8-bit serial interface: two circuits (16-bit cascade conne...

product image

LC66558B Picture
See larger image
SeekIC No. : 004391760 Detail

LC66558B: Features: On-chip ROM and RAM with 6 k (or 8 k) byte and 512 * 4-bit capacities• The same instruction set (with 127 instructions) as the LC66000 Series (except that the SB instruction is notsu...

LC66558B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC66558B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

On-chip ROM and RAM with 6 k (or 8 k) byte and 512 * 4-bit capacities
• The same instruction set (with 127 instructions) as the LC66000 Series (except that the SB instruction is not
supported)
• I/O ports: 54 pins
• 8-bit serial interface: two circuits (16-bit cascade connection supported)
• Instruction cycle: 0.92 to 10 s (at 3 to 5.5 V)
• Powerful timers and prescalers
   12-bit timer: time-limit timer, event counter, pulse width measurement, square wave output
   8-bit timer: time-limit timer, event counter, PWM output, square wave output
   12-bit prescaler: time base functions
• Powerful 11-factor 8-vector interrupt system
   External interrupts: 6 factors/3 vectors
   Internal interrupts: 5 factors/5 vectors
• Flexible I/O functions
   Comparator inputs, three-value inputs, 20 mA drive outputs, 15 V breakdown voltage pins, pull-up/opendrain option switching possible
• Runaway detection function (watchdog timer) option
• 8-bit I/O function
• Power saving functions: halt and hold modes
   Package: DIP64S, QFP64E
• Evaluation LSI: LC66599 (evaluation chip) + EVA850/800-TB665XX
   LC66E516 (On-chip EPROM microcontrollers)
   LC66P516 (On-chip OTPROM microcontrollers)


Pinout

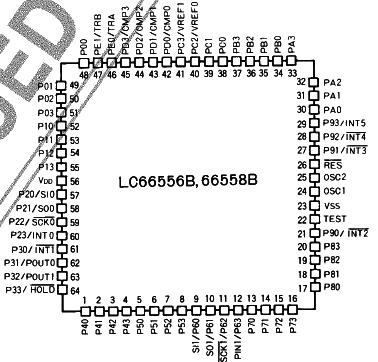

Connection Diagram


Specifications

Parameter Symbol Conditions

Ratings

 Unit Note
Maximum supply voltage VDD max VDD
0.3 to +7.0
V
Input voltage VIN (1) P2, P3 (except for the P33/HOLD pin) and P6
0.3 to 15.0
V
1
VIN (2) other inputs
0.3 to VDD + 0.3
V
2
Output voltage VOUT (1) P2, P3 (except for the P33/HOLD pin),P6, P7 and PA
0.3 to +15.0
V
1
VOUT (2) other inputs
0.3 to VDD + 0.3
V
2
Output current per pin

ION(1)

 P0, P1, P2, P3 (except for the P33/HOLD pin), P4, P5, P6, P8, P9 and PC
4
mA
3

ION (2)

 P7, PA, PB
20
mA
3
IOP (1) P0, P1, P4, P5, P7, PA, PB
2
mA
4
IOP (2) P2, P3 (except for the P33/HOLD pin), P6, P8, P9 and PC
75
mA
4
Total pin current ION (1) P2, P3 (except for the P33/HOLD pin), P4, P5, P6, P7 and P8
75
mA
3
ION (2) P0, P1, P9, PA, PB, PC
75
mA
3
-IOP(1) P2, P3 (except for the P33/HOLD pin), P4, P5, P6, P7 and P8
25
mA
4
-IOP(2) P0, P1, P9, PA, PB, PC
25
mA
4
Allowable power dissipation Pd max Ta = 30 to +70°C:DIP64S (QIP64E)
600(430)
mW
5
Operating temperature Topr
30 to +70
Storage temperature Tstg
55 to +125

Note: 1. Applies to open drain output specification pins. The rating from the "other pin" entry applies for specifications other than the open drain output specification.
2. Levels up to the free-running oscillation level are allowed for the oscillator input and output pins.
3. Inflow current (For P8, the CMOS output specifications apply.)
4. Outflow current (Applies to pull-up output specification and CMOS output specification pins except P8.)
5. We recommend using reflow soldering methods to mount the QFP package version.
   Contact your Sanyo sales representative to discuss process conditions if techniques in which the whole package is immersed in a solder bath (solder dip or spray techniques) are used.


Description

The LC66556B and LC66558B are four-bit single-chip CMOS microcontrollers that integrate on a single chip all the functions required in a microcontroller, including ROM, RAM, I/O ports, two serial interfaces, comparator inputs, three-value inputs, timers and interrupts. These products are provided in a 64-pin package.

These products differ from the earlier LC66558A Series in the power supply voltage range and certain other electrical characteristics.
