LC65P29

Features: • Mask option settings can be switched by setting PROM data. All options, except for the port output circuit type can be set with PROM data.• 1-KB PROM• PROM data security function• Pin compatible with the mask ROM version• Instruction cycle time: 0.92 s to ...

product image

LC65P29 Picture
See larger image
SeekIC No. : 004391737 Detail

LC65P29: Features: • Mask option settings can be switched by setting PROM data. All options, except for the port output circuit type can be set with PROM data.• 1-KB PROM• PROM data securit...

LC65P29 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC65P29
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Mask option settings can be switched by setting PROM data. All options, except for the port output circuit type can be set with PROM data.
• 1-KB PROM
• PROM data security function
• Pin compatible with the mask ROM version
• Instruction cycle time: 0.92 s to 20 s
• Packages: DIP24S and MFP30S


Pinout

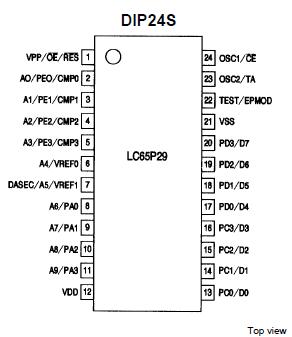

Connection Diagram


Specifications

Parameter
Symbol
Applicable
pins/notes
 Conditions
Ratings
Unit
min
typ
max
Maximum supply voltage
VDDmax
VDD

0.3
+7.0
V
Output voltage
VO
OSC2

Values up to the generated voltageare allowed.
V
Input voltage
VI1
OSC1*1

0.3
VDD + 0.3
V
VI2
TEST, RES

0.3
VDD + 0.3
V
VI3
Ports with
PE specifications

0.3
VDD + 0.3
V
I/O voltage
VIO
PA, PC, PD

0.3
+15
mA
Peak output current
IOP
PA, PC, PD

2
+20
mA
Average output current
IOA
PA, PC, PD
 The 100 ms average per pin
2
+20
mA
IOA1
PA
 The total current for pins PA0 to PA3*2
6
+40
mA
IOA2
PC, PD
 The total current for pins PC0 to PC3 andPD0 to PD3*3
14
+90
mA
Allowable power dissipation
Pdmax1
Ta = 30 to +70°C(DIP24S)
360
mW
Pdmax2
Ta = 30 to +70°C(MFP30S)
150
mW
Operating temperature
Topr

30
+70
°C
Storage temperature
Tstg

55
+125
°C



Description

The LC65P29 is a one-time programmable (on-chip PROM) version of Sanyo's LC6529N/F/L 4-bit single-chip CMOS microcontroller. It provides identical functionality to, and pin compatibility with, the mask ROM versions of the LC6529N/F/L, and provides a 1-KB internal PROM. The LC65P29 is provided in DIP24S and MFP30S plastic packages and the program can be written by the customer, thus makes this IC appropriate for the limited-run products and the startup of initial production of new products. Furthermore, it can provide reduced changeover periods when end product specifications change.

Additionally, the LC65P29 can function as a one-time programmable PROM version of the Sanyo LC6527N/F/L and LC6528N/F/L by using the 29T27 adapter socket
