LC65E1104

Features: • EPROM data option switchingThe following four LC65E1104 functions can bespecified by EPROM data:- Port C and D output levels at reset- Clock oscillator option- Clock predivider option- Watchdog reset optionHowever, note that the port output circuit type cannot bechanged. These ci...

product image

LC65E1104 Picture
See larger image
SeekIC No. : 004391735 Detail

LC65E1104: Features: • EPROM data option switchingThe following four LC65E1104 functions can bespecified by EPROM data:- Port C and D output levels at reset- Clock oscillator option- Clock predivider opt...

LC65E1104 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC65E1104
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• EPROM data option switching
The following four LC65E1104 functions can be
specified by EPROM data:
- Port C and D output levels at reset
- Clock oscillator option
- Clock predivider option
- Watchdog reset option
However, note that the port output circuit type cannot be
changed. These circuits are always open-drain outputs.
• Internal UVEPROM capacity: 4096 bytes
• The LC65E1104 on-chip UVEPROM can be
programmed and verified using a general-purpose
EPROM programmer.
Sanyo provides special-purpose 30-to-28-pin adapters
(the W65EP1104D for the DIC package and the
W65EP1104M for the MFC package) to allow
commercial EPROM programmers to be used with the
LC65E1104.
• Data security function
• Pin compatible with the LC651104/1102 mask ROM
devices
• Instruction cycle time: 0.92 s to 20 s (A/D converter
cycle time: 0.98 s to 12 s)
• Factory shipment: DIC-30S (with window), MFC-30S
(with window)


Pinout

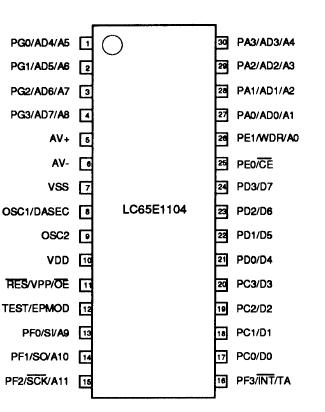

Connection Diagram


Specifications

Parameter
Symbol
 Conditions
Ratings
Unit
Maximum supply voltage
VDDmax
 VDD
0.3 to +7.0
V
Output voltage
VO
 OSC2
Allowable up to the
generated voltage
V
Input voltage
VI1
 OSC1*1
0.3 to VDD + 0.3
V
VI2
 TEST, RES, AV+, AV
0.3 to VDD + 0.3
V
Input/output voltage

VIO1

 PC0 to PC3, PD0 to PD3, PE0, PE1, PF0 to PF3
0.3 to +15
VIO2
 PA0 to PA3, PG0 to PG3
0.3 to VDD + 0.3
mA
Peak output current
IOP
 I/O port
2 to +20
mA
Average output current
IOA
 I/O port: Per pin over a 100 ms period
2 to +20
mA
IOA1
 PC0 to PC3, PD0 to PD3, PE0, PE1:Total current for PC0 to PC3, PD0 to PD3, and PE0, PE1*2
15 to +100
mA
IOA2
 PC0 to PC3, PD0 to PD3, PE0, PE1:Total current for PF0 to PF3, PG0 to PG3, and PA0 to PA3*2
15 to +100
mA
Allowable power dissipation
Pdmax1
 Ta = +10 to +40°C (DIC package)
250
mW
Pdmax2
 Ta = +10 to +40°C (MFC package)
150
mW
Operating temperature
Topr

+10 to +40
°C
Storage temperature
Tstg

55 to +125
°C



Description

The LC65E1104 is an on-chip UVEPROM version of Sanyo's LC651104N/F/L and LC651102N/F/L CMOS 4-bit single-chip microcontrollers. The LC65E1104 has the same functions and pin assignment as the LC651104N/F/L and LC651102N/F/L mask ROM products, although the A/D characteristics and certain other characteristics differ somewhat. It includes a 4-KB on-chip EPROM.

The LC65E1104 is provided in DIC30S and MFC30S window packages and is ideal for program development and evaluation since program data can be rewritten multiple times.
