LC6528L

Features: ` CMOS technology for a low-power operation (with instruction-controlled standby function)` ROM / RAM LC6527N / F / L ROM : 1K * 8bits, RAM : 64 * 4bits LC6528N / F / L ROM : 0.5K * 8bits, RAM : 32* 4bits` Instruction set : 51 kinds selectable from 80 instructions common to the LC6500 se...

product image

LC6528L Picture
See larger image
SeekIC No. : 004391732 Detail

LC6528L: Features: ` CMOS technology for a low-power operation (with instruction-controlled standby function)` ROM / RAM LC6527N / F / L ROM : 1K * 8bits, RAM : 64 * 4bits LC6528N / F / L ROM : 0.5K * 8bits,...

LC6528L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC6528L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` CMOS technology for a low-power operation (with instruction-controlled standby function)
` ROM / RAM
    LC6527N / F / L ROM : 1K * 8bits, RAM : 64 * 4bits
    LC6528N / F / L ROM : 0.5K * 8bits, RAM : 32* 4bits
` Instruction set : 51 kinds selectable from 80 instructions common to the LC6500 series
` Wide operating voltage range from 2.2V to 6.0V (L version)
` Instruction cycle time of 0.92s (F version)
` Flexible I / O port
    • Number of ports : 4 ports / 13 pins max.
    • All ports : Input / output common
` Input / output voltage 15V max. (open drain type)
` Output current 20mA max. (sink current) (LED direct drivable)
    • Option selectable for your intended system
       A. Open drain output, pull-up resistor : Single-bit select for all ports
       B. Output level at the reset mode : 4-bit select of H / L level for port C / D
`  Stack level : 4 levels
`  Timer : 4-bit prescaler+8-bit programmable timer
`  Clock oscillation option selectable for your intended system
     • Oscillator option :2-pin RC oscillation (N, L version)
` 2-pin ceramic resonator oscillation, 1-pin external clock input (N, F, L version)
    • Predivider option : No predivider, 1 / 3 predivider, 1 / 4 predivider (N, L version)


Pinout

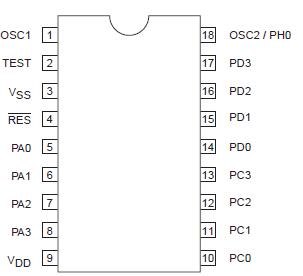

Connection Diagram


Specifications

Parameter Symbol Pins Conditions
Limits
unit
Maximum
supply voltage		 VDD max VDD
-0.3 to +7.0V
V
Output voltage VO OSC2
Allowable up to voltage generated
V
Input voltage VI(1) OSC1 (*1)
-0.3 to VDD+0.3
V
VI(2) TEST, RES
-0.3 to VDD+0.3
V
Input /
output voltage		 VIO(1) Port of OD type
-0.3 to +15
V
VIO(2) Port of PU type
-0.3 to VDD+0.3
V
Peak outputcurrent IOP I / O port
-2 to +20
mA
Average output
current		 IOA I / O port Per pin over the period of 100ms
-2 to +20
mA
IOA(1) PA0 to 3 Total current of PA0 to 3,(*2)
-6 to +40
mA
IOA(2) PC0 to 3 PH0
PD0 to 3		 Total current of PC0 to 3,
PD0 to 3 PH0 (*2)
-14 to +90
mA
Allowable power
dissipation		 Pd max(1)   Ta=-40 to +85(DIP package)
300
mW
Pd max(2)   Ta=-40 to +85(MFP package)*
200
mW
Operating
temperature		 Topg
-40 to +85
Storage
temperature		 Tstg
-55 to +125
*``````Under development. Do not immerse the package in the solder dip tank when mounting the MFP on the substrate.


Description

The LC6528L, LC6528N / F / L belong to our single-chip 4-bit microcontroller LC6500 series fabicated using CMOS process technology and are suited for use in small-scale control-oriented applications. Their basic asrchitecture and instruction set are the same. Application areas include the standard logic circuits and applications where the number of controls is small. The LC6527N / F / L, LC6528N / F / L have relation to the LC6527C / H, LC6528C / H. The C version can be replaced by N version, and the H version (a part of the function is different). The L version is added as a low voltage version. The following show the careful difference of C and N version when you replace C version with N version.
