LB26RKG01, US $ 7.15-8.69 , NKK Switches, LB26RKG01 DataSheet download, circuit diagram from SeekIC.com

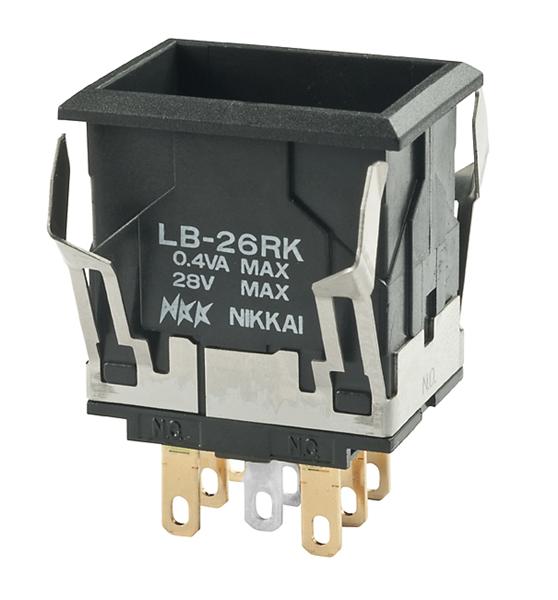

See larger image

SeekIC No. : 002616875 Detail

LB26RKG01: Pushbutton Switches DPDT ON-ON BLACK RECTANGULR BODY ONLY

LB26RKG01 Data Sheet

US $ 7.15~8.69 / Piece | Get Latest Price

Part Number:: LB26RKG01
Mfg:: NKK Switches
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$8.69
$7.92
$7.6
$7.15

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LB26CGW01 evaluate
US $6.29 - 8.68 / Piece

Pushbutton Switches DPDT ON-ON GRAY ROUND BODY ONLY
LB26CGW01-5C12-JC evaluate
US $15.59 - 16.47 / Piece

Pushbutton Switches ON-ON ROUND GRAY 12V RED LED CLR/RED CAP
LB26CGW01-F evaluate
US $6.69 - 7.92 / Piece

Pushbutton Switches SNAP IN NON-ILL

Product Details

Quick Details

Contact Form :	DPDT	Switch Function :	ON - ON
Voltage Rating AC :	28 V	Voltage Rating DC :	28 V
Power Rating :	0.4 Volt-Amp	Mounting Style :	Snap In
Illumination :	Not Illuminated	Termination Style :	Solder Lug
Contact Plating :	Gold	Actuator :	Rectangular
Flammability Rating :	UL 94 V-0

Description

Current Rating :
Illumination Color :
IP Rating :
Cap Color :
Packaging :
Voltage Rating DC : 28 V
Illumination : Not Illuminated
Flammability Rating : UL 94 V-0
Power Rating : 0.4 Volt-Amp
Contact Plating : Gold
Termination Style : Solder Lug
Contact Form : DPDT
Mounting Style : Snap In
Voltage Rating AC : 28 V
Actuator : Rectangular
Switch Function : ON - ON

Parameters:

Technical/Catalog Information	LB26RKG01
Vendor	NKK Switches of America Inc
Category	Switches
Actuator Type	Plunger for Cap
Circuit	DPDT
Contact Rating @ Voltage	0.4VA @ 28VAC/DC
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Mounting Type	Panel Mount, Snap-In
Switch Function	On-On
Termination Style	Solder, Quick Connect - .110" (2.8mm)
Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LB26RKG01 LB26RKG01
