Product Details

Description

Pinout

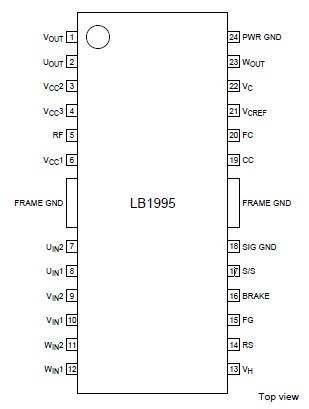

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Power supply voltage	V_CC1 max		7.0	V
	V_CC2 max		14.4	V
	V_CC3 max		14.4	V
Applied output voltage	V_O max		14.4	V
Applied intput voltage	V_IN max		V_CC1	V
Output current	I_O max		1.3	A
Allowable power dissipation	Pd max	IC only	0.8	W
Allowable power dissipation	Pd max	with substrate (114.3 X 76.1 X 1.6 mm³, glass exposy)	1.9	W
Operating temperature	Topr		20 to +75	°C
Storage temperature	Tstg		55 to +150	°C

Description

The LB1995 is a three-phase brushless motor driver especially suited for CD-ROM spindle motor drives.
