Features: • Withstand voltage 45 V, output current 2.5 A• Direct PWM drive output• 3 built-in output top-side diodes• Built-in current limiter• Built-in FG output circuitPinoutSpecifications Absolute maximum ratings Vm min [V] 20 Vm max [V] 42 ...

See larger image

SeekIC No. : 004391225 Detail

LB1975: Features: • Withstand voltage 45 V, output current 2.5 A• Direct PWM drive output• 3 built-in output top-side diodes• Built-in current limiter• Built-in FG output circu...

LB1975 Data Sheet

Get Latest Price

Part Number:: LB1975
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LB1906CL evaluate
Specifications Absolute maximum ratingsVm min [V]2.2Vm max [V]7.5IO max [A]0.4Excitation mode1-2...
LB1909M evaluate
Specifications Absolute maximum ratingsVm min [V]2.5Vm max [V]16IO max [A]0.8Excitation mode2 ph...
LB1909MC-AH evaluate
US $.77 - .86 / Piece

Motor / Motion / Ignition Controllers & Drivers Step Motor Driver IC for 2-phase Excit

Product Details

Description

Features:

• Withstand voltage 45 V, output current 2.5 A
• Direct PWM drive output
• 3 built-in output top-side diodes
• Built-in current limiter
• Built-in FG output circuit

Pinout

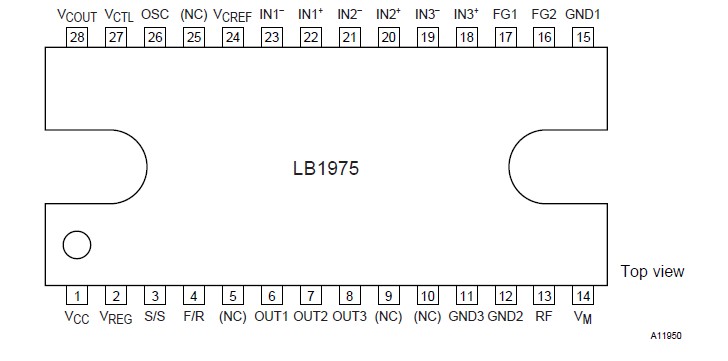

Connection Diagram

Specifications

Absolute maximum ratings
Vm min [V]	20
Vm max [V]	42
IO max [A]	2.5

Parameter	Symbol	Conditions	Ratings	Unit
Supply voltage	V_CC max		7	V
	V_M max		45	V
Output current	I_O max		2.5	A
Maximum input current	I_REG max	V_REGpin	10	mA
Allowable power dissipation	Pd max1	IC only	3	W
	Pd max2	With infinite heat sink	20	W
Operating temperature	Topr		20 to +100	°C
Storage temperature	Tstg		55 to +150	°C

Description

The LB1975 is a three-phase brushless motor driver IC suited for use in direct PWM driving of DC fan motors for air conditioners, water heaters, and other similar equipment. Since a shunt regulator circuit is built in, single power supply operation sharing the same power supply for the motor is supported.
