LB1964T

Features: • Single-phase full-wave drive• Low-voltage operation (VCC = 2.0V min.)• Low-saturation output (upper side + lower side saturation voltage: Vosat (total) = 0.3V typ., Io = 100 mA)• Ultraminiature package (3.0 ´ 4.9 ´ 0.93 mm3)• FG output• B...

product image

LB1964T Picture
See larger image
SeekIC No. : 004391220 Detail

LB1964T: Features: • Single-phase full-wave drive• Low-voltage operation (VCC = 2.0V min.)• Low-saturation output (upper side + lower side saturation voltage: Vosat (total) = 0.3V typ., Io ...

LB1964T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LB1964T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single-phase full-wave drive
• Low-voltage operation (VCC = 2.0V min.)
• Low-saturation output (upper side + lower side saturation voltage: Vosat (total) = 0.3V typ., Io = 100 mA)
• Ultraminiature package (3.0 ´ 4.9 ´ 0.93 mm3)
• FG output
• Built-in thermal protection circuit

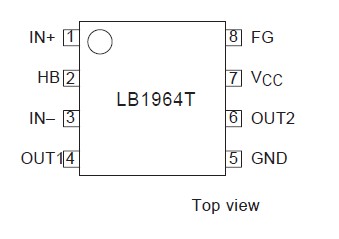

Pinout

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VCC max   9 W
Allowable power dissipation Pd max With specified substrate* 370 mW
OUT output current IOUT max   0.3 A
OUT output withstand voltage VOUT max   9 V
FG output withstand voltage VFG max   7 V
FG output current IFG max   5 mA
Operating temperature Topr   20 to +85 °C
Storage temperature Tstg   55 to +150 °C
