LB1950V

Features: • Drives 3-phase full-wave brushless sensorless motors• Soft switching drive• Speed control using motor power-supply voltage control for reduced power• Allows operation from a 3-V power supply.• The residual output voltage can be set to one of four values.&#...

product image

LB1950V Picture
See larger image
SeekIC No. : 004391214 Detail

LB1950V: Features: • Drives 3-phase full-wave brushless sensorless motors• Soft switching drive• Speed control using motor power-supply voltage control for reduced power• Allows opera...

LB1950V Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LB1950V
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Drives 3-phase full-wave brushless sensorless motors
• Soft switching drive
• Speed control using motor power-supply voltage control for reduced power
• Allows operation from a 3-V power supply.
• The residual output voltage can be set to one of four values.
• Supports bidirectional rotation.
• Standby function (only the FG and PG amplifiers operate)
• Brake circuit
• Thermal shutdown circuit
• FG and PG amplifiers


Pinout

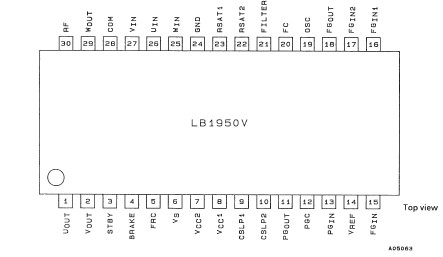

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VCC1 max
7
V
VCC2 max
12
V
VS max
VCC2
V
Output voltage
VO max
VS + 2
V
VI1 max
Control system
0.3 to VCC1 + 0.3
V
Input voltage
VI2 max
U, V, W, COM
VS + 2
V
Output current
IO max
1.0
A
wable power dissipation
Pd max
0.5
W
Operating temperature
Topr
20 to +75
°C
Storage temperature
Tstg
55 to +150
°C



Description

The LB1950V is a 3-phase brushless sensorless motor driver IC that is particularly well-suited to driving camcorder drum motors.
