Product Details

Description



Features:

• PWM current control (fixed OFF time)
• Selectable current decay pattern (FAST, SLOW, and MIX DECAY modes)
• Simultaneous ON prevention function (feedthrough current prevention)
• Built-in thermal shutdown circuit
• Built-in noise canceler




Pinout

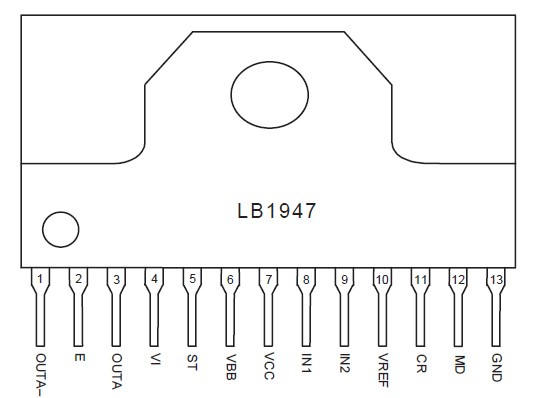

Connection Diagram




Specifications

Absolute maximum ratings
Vm min [V] 10
Vm max [V] 45
IO max [A] 2
Channels 1


Parameter
Symbol
Conditions
Ratings
Unit
Maximum motor supply voltage
VBB max
50
V
Output peak current
I OPEAK
tw 20 ms
2.25
A
Output continuous current
I O max
2.0
A
Logic supply voltage
VCC max
7.0
V
Logic input voltage range
VIN
0.3 to VCC
V
Emitter output voltage
VE max
1.1
V
Reference voltage
VREF
0.3 to VCC
V
Operating temperature
Topr
20 to +85
°C
Storage temperature
Tstg
55 to +150
°C
Allowable power dissipation
Pd max
Ta = 25°C
1.6
W
