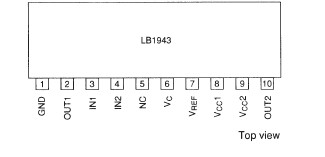

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	V_CC max		18	V
Input voltage	V_IN	V_CC V_IN	0.3 to +6	V
Output current	I_OUT		±1.6	A
Allowable power dissipation	Pd max		1.2	W
Operating temperature	Topr		25 to +75	°C
Storage temperature	Tstg		55 to +125	°C

Description

The LB1943 is a forward/reverse motor driver IC. This IC supports forward, reverse, and braking control from a single input, and the desired output voltage can be set with a resistor. Either full drive or VC drive can be selected from the single input, and the LB1943 can be controlled from a microprocessor.
