LB1929

Features: • Three-phase bipolar drive (30 V, 3.5 A)• Direct PWM drive• Built-in low side output kickback absorption diode• Control technique that combines a speed discriminator with PLL speed control• Speed lock detection output• Built-in forward/reverse switchi...

product image

LB1929 Picture
See larger image
SeekIC No. : 004391193 Detail

LB1929: Features: • Three-phase bipolar drive (30 V, 3.5 A)• Direct PWM drive• Built-in low side output kickback absorption diode• Control technique that combines a speed discriminat...

LB1929 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LB1929
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Three-phase bipolar drive (30 V, 3.5 A)
• Direct PWM drive
• Built-in low side output kickback absorption diode
• Control technique that combines a speed discriminator with PLL speed control
• Speed lock detection output
• Built-in forward/reverse switching circuit
• Full complement of built-in protection circuits,including current limiter, thermal protection circuit, and motor lockup protection circuit.

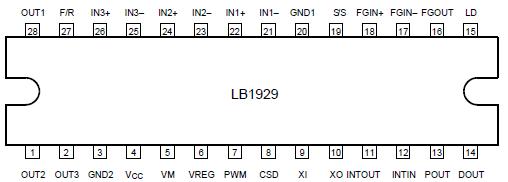

Pinout






Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VCC max
30
V
Output current
IO max
t 500 ms
3.5
A
Allowable power dissipation 1
Pd max*1
 Independent IC
3
W
Allowable power dissipation 2
Pd max*2
Infinitely large heat sink
20
W
Operating temperature
Topr
-20to+80
°C
Storage temperature
Tstg
-55to+150
°C





Description

The LB1929 is a three-phase brushless motor driver that is optimal for driving the drum and paper feed motors in laser printers and plain-paper copiers. It can provide drive with minimal power loss due to direct PWM drive technique, features on-chip peripheral circuits such as a speed control circuit and an FG amplifier, and can implement a drive circuit in a single chip.
