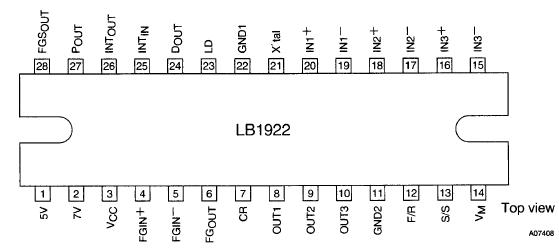

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Supply voltage	V_CC		20	V
Supply voltage	V_M		20	V
Output current	I_O	T 100 ms	3.1	A
Allowable power dissipation	Pd max*1	Independent IC	3	W
Allowable power dissipation	Pd max*2	With an arbitrarily large heat sink	20	W
Operating temperature	Topr		-20to+80	°C
Storage temperature	Tstg		-55to+150	°C

Description

The LB1922 is a single-chip drive circuit that provides the direct PWM drive output appropriate for the power brushless motors used in office automation equipment. It provides a variety of peripheral circuits on chip, including a speed control circuit and an FG amplifier. It is optimal in systems that use a 12-V power supply.
