LB1921

Features: • The LB1921 is an improved output current version of the LB1824.• Three-phase bipolar brushless motor driver• Digital speed control circuit• Thermal shutdown circuit• Start/stop pin• Lock detector output• Crystal oscillator and divider circuits&...

product image

LB1921 Picture
See larger image
SeekIC No. : 004391187 Detail

LB1921: Features: • The LB1921 is an improved output current version of the LB1824.• Three-phase bipolar brushless motor driver• Digital speed control circuit• Thermal shutdown circu...

LB1921 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LB1921
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• The LB1921 is an improved output current version of the LB1824.
• Three-phase bipolar brushless motor driver
• Digital speed control circuit
• Thermal shutdown circuit
• Start/stop pin
• Lock detector output
• Crystal oscillator and divider circuits
• FG and error amplifiers
• Power supply current limiter


Application

• Paper feed and drum motor drivers in FAX and PPC units


Pinout

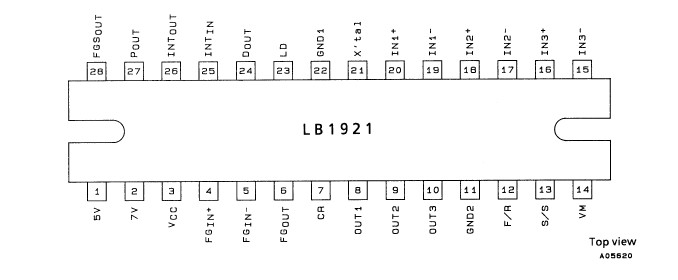

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage 1 VCC max   30 V
Maximum supply voltage 2 VM max   30 V
Output current IO max T 100 ms 3.5 A
Allowable power dissipation 1 Pd max1 Independent IC 3 W
Allowable power dissipation 2 Pd max2 With an arbitrarily large heat sink 20 W
Operating temperature Topr   20 to +80 °C
Storage temperature Tstg   55 to +150 °C
