Product Details

Description

Features:

• 3-phase brushless motor driver
• 120° voltage linear drive control
• V-type input used for the control voltage
• Control gain switching supported
• Pins for system control and control of acceleration and deceleration provided.
• Start/stop pin provided.
• Hall bias circuit

Pinout

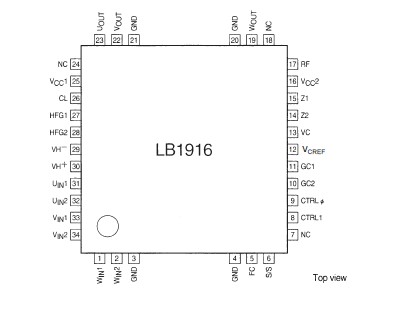

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	V_CC1max		14	V
Maximum supply voltage	V_CC2 max		7.0	V
Output peak current	V_OU, V, W		13	V
Output continuous current	I_OUT		1.0	A
Allowable power dissipation	P_d max	Independent I_C	0.77	W
Operating temperature	T_opr	With heat sink	20 to +85	°C
Storage temperature	T_stg		55 to +150	°C
