Product Details

Description

Pinout

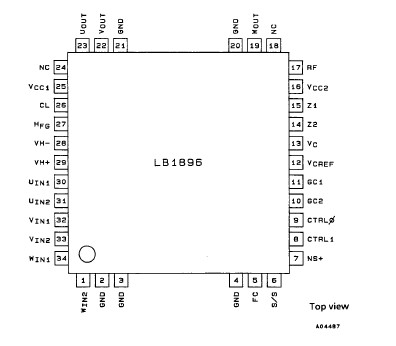

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	V_CC1 max		20	V
Maximum supply voltage	V_CC2 max		20	V
Applied output voltage	VOU, V, W		7.0	V
Output current	I_OUT		20	A
Allowable power dissipation	P_d max	Independent I_C	1.2	W
Allowable power dissipation	P_d max	Independent I_C	0.77	W
Operating temperature	T_opr		25 to +75	°C
Storage temperature	T_stg		55 to +150	°C
