Product Details

Description

Features:

• 120° voltage linear system
• Appropriate for portable applications, since the LB1881M reduces system power requirements by using motor voltage control for speed control.
• Built-in torque ripple compensation circuit
• Small external capacitances due to the adoption of a soft switching technique (chip capacitor).
• Built-in thermal shutdown circuit
• Built-in FG amplifier

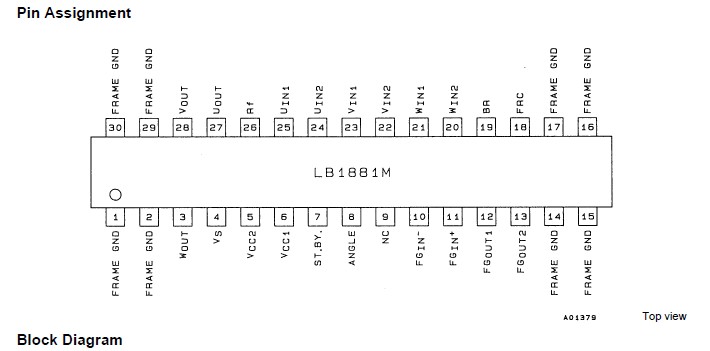

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
supply voltage	V_CC1max		7	V
supply voltage	V_CC1 max		12	V
Output applied voltage	V_omax		V_CC2	V
Input applied voltage	VImax	All input pins	V_S + 2	V
Output current	I_O max		V_CC2	A
Allowable power dissipation	P_dmax		1.0	W
Allowable power dissipation	P_dmax		1.0	W
Operating temperature	T_OPR		20 to +75	°C
Storage temperature	T_stg		55 to +125	°C
