Features:

• Three-phase bipolar drive
• Direct PWM drive technique
• Built-in lower side output diode
• Output current limiter
• Reference clock input circuit (FG frequency equivalent)
• PLL speed control circuit
• Phase lock detector output (with masking function)
• Built-in protection circuitry includes current limiter, restraint protection, overheat protection, low-voltage protection, etc.
• Brake method switching circuit (free-run or reverse torque)
• 5V regulator output
• Power save function






Pinout

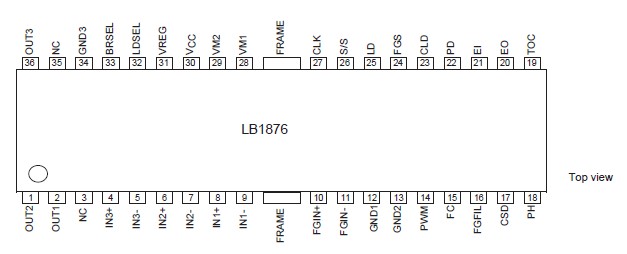

Connection Diagram




Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage 1 VCC max 30 V
Maximum output current Maximum output current IO max T 500 ms 2.5 A
Allowable power dissipation 1 Pd max1 IC only IC only 0.9 W
Allowable power dissipation 2 Pd max2 *With substrate 2.1 W
Operating temperature Topr 20 to +80
Storage temperature Tstg 55 to +150


Absolute maximum ratings
Vm min [V] 9.5
Vm max [V] 28
IO max [A] 2.5
