Features:

• Three-phase bipolar drive
• Direct PWM drive (bottom side) or PAM drive selectable
• PLL speed control circuit
• PWM oscillator
• Quartz oscillator
• Frequency divider
• FG with Schmitt comparator
• FG input single edge, dual edge selector circuit
• Integrating amplifier
• Phase lock detector output
• Current limiter
• Motor lock protection
• Thermal protection
• Forward/reverse circuit
• 5V regulator output


Pinout

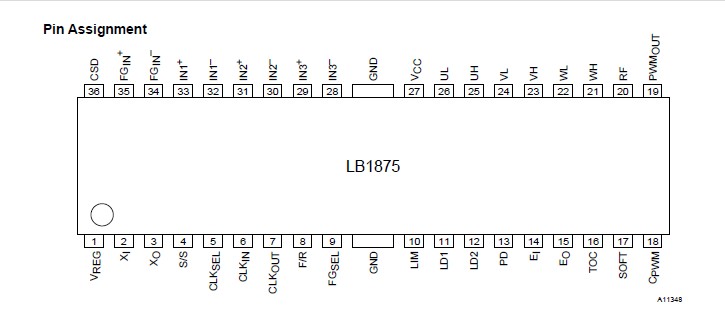

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Motor supply voltage VBB   14.5 V
Output current IOPEAK t£20 ms 30 A
Allowable power dissipation Pd max IC only 0.9 W
With an arbitrarily large heat sink 2.1 W
Operating temperature Topr   20 to +80 °C
Storage temperature Tstg   55 to +150 °C
