Product Details

Description

Features:

• Current linear drive
• No output electrolytic capacitors required.

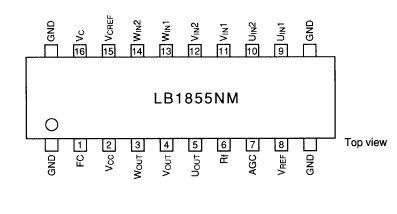

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	V_CC MAX		20	V
Maximum output current	I_OUT max		1.2	A
Allowable power dissipation	P_dmax		1.2	W
Operating temperature	T_opr		20 to +75	°C
Storage temperature	T_stg		55 to +150	°C
