Features:

• Built-in output current limiter and detector circuit
• Built-in low-saturation voltage forward/reverse bridge
circuit: V_Osat = 0.40V typ. at 400 mA
• Little current drain in standby mode (up to 0.1 A)
• Built-in low-saturation constant voltage circuit using an external pnp transistor
• Built-in reference voltage linked to input
• Built-in thermal shutdown circuit
• Low external parts count. Compact SSOP-20 package allows space saving design.

Pinout

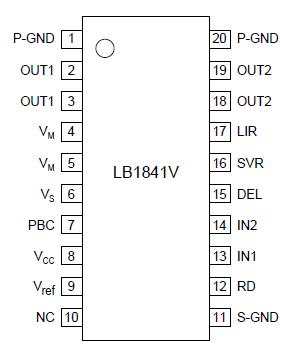

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	V_CC max		10.5	V
Maximum output current	Im Max		800	mA
Input supply voltage	V_IN		-0.3to+10	V
Allowable power dissipation	Pd max	With specified (50× 35 × 1.6 mm³)	800	mW
Operating temperature	Topr		-20to+80	°C
Storage temperature	Tstg		-40to+150	°C

Description

The LB1841V is a low-saturation current-controlled forward/reverse motor driver with provision for a constant voltage circuit using an external transistor and an output current limiter function. Its design is optimized for use in video camera loading motors.
