LB1840M

Features: Wide operating voltage range (3.0 to 9.0 V). Low saturation voltageVO(sat) = 0.40 V at IO = 200 mA.Consumes almost no current in standby mode (0.1 A or less)Permits setting of bidirectional constant-voltage regulated value.Three-input type that is ideal for a two-phase bipolar driverPerm...

product image

LB1840M Picture
See larger image
SeekIC No. : 004391140 Detail

LB1840M: Features: Wide operating voltage range (3.0 to 9.0 V). Low saturation voltageVO(sat) = 0.40 V at IO = 200 mA.Consumes almost no current in standby mode (0.1 A or less)Permits setting of bidirectiona...

LB1840M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LB1840M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Wide operating voltage range (3.0 to 9.0 V).
Low saturation voltage
VO(sat) = 0.40 V at IO = 200 mA.
Consumes almost no current in standby mode (0.1 A or less)
Permits setting of bidirectional constant-voltage regulated value.
Three-input type that is ideal for a two-phase bipolar driver
Permits switching between constant-voltage regulated output and saturated output.
Built in reference voltage coupled to input. Compact MFP-14S package.

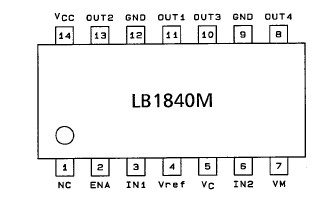

Pinout

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VCC/VS max 10.5 V
VS max

250

 mA
Input applied voltage VIN 0.3 to +10 V
Allowable power dissipation Pd max With board ( 30 x 30 x 1.5 mm3 ) 800 mW
Operating temperature TOPR 20 to +80 °C
Storage temperature Tstg 40 to +125 °C
