LB1832V

Features: • Supports low-voltage drive.- When the same power supply is used for VCC and VS: VCC = VS = 1.6 V min.- When different power supplies are used for VCC and VS: VS = 1.0 V min, VCC = 2.5 V min.• Low saturation voltage (Upper side transistor plus lower side transistor remaining...

product image

LB1832V Picture
See larger image
SeekIC No. : 004391132 Detail

LB1832V: Features: • Supports low-voltage drive.- When the same power supply is used for VCC and VS: VCC = VS = 1.6 V min.- When different power supplies are used for VCC and VS: VS = 1.0 V min, VCC = ...

LB1832V Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LB1832V
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports low-voltage drive.
 - When the same power supply is used for VCC and VS: VCC = VS = 1.6 V min.
 - When different power supplies are used for VCC and VS: VS = 1.0 V min, VCC = 2.5 V min.
• Low saturation voltage (Upper side transistor plus lower side transistor remaining voltage: 0.6 V (typ) at 1 A)
• Zero current drain in standby mode
• 1.5-channel bidirectional driver that can be directly driven from the control microprocessor
• Separate logic and motor power supply connections
• Brake function
• Built-in spark killer diode
• Miniature package (SSOP-24)


Pinout

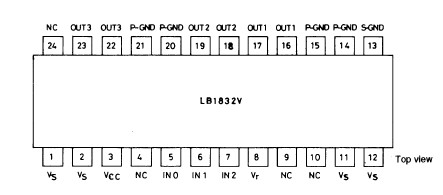

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VCC max   0.3 to +8.0 V
VS max   0.3 to +8.0 V
Output applied voltage VOUT   0.3 to VS + VSF V
Input applied voltage VIN   0.3 to +0.8 V
GND pin current IGND   2.0 A
Allowable power dissipation Pd max1 ndependent IC 550 mW
Pd max2 Mounted on the specified printed circuit board
(40 ´ 30 ´ 1.5 mm3 glass epoxy)		 1000 mW
Operating temperature TOPR   20 to +75 °C
Storage temperature Tstg   40 to +150 °C
