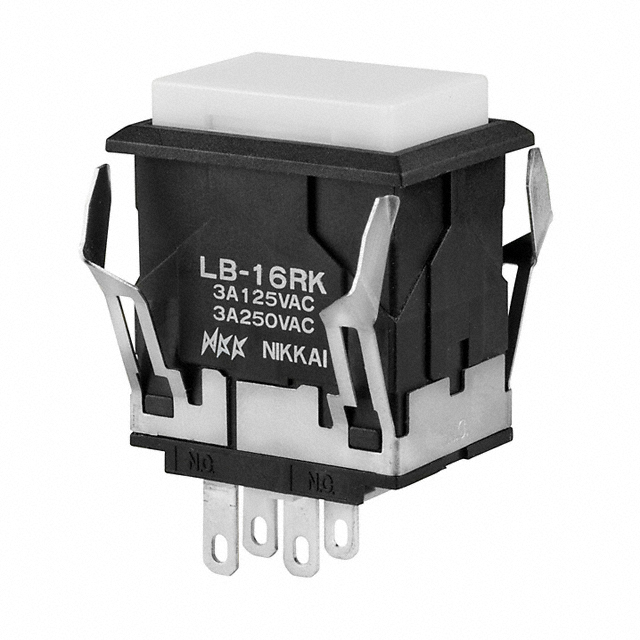

See larger image

SeekIC No. : 004166061 Detail

LB16RKW01-28-BJ: SWITCH PUSHBUTTON SPDT 3A 125V

LB16RKW01-28-BJ Data Sheet

US $ 10.06~10.06 / Piece | Get Latest Price

Part Number:: LB16RKW01-28-BJ
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1

Unit Price
$10.06

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LB1608T100M evaluate
US $.08 - .26 / Piece

Common Mode Inductors (Chokes) INDCTR STD WND 0603 10uH 20%
LB1608T1R0M evaluate
US $.08 - .26 / Piece

Common Mode Inductors (Chokes) INDCTR STD WND 0603 1.0uH 20%
LB1608T2R2M evaluate
US $.08 - .26 / Piece

Common Mode Inductors (Chokes) INDCTR STD WND 0603 2.2uH 20%

Product Details

Quick Details

Series:	LB	Manufacturer:	NKK Switches
Number of Receivers :	11	Type:	Standard, Illuminated
Circuit:	SPDT	Switch Function:	On-On
Current Rating:	3A (AC/DC)	Voltage Rating - AC:	125V
Voltage Rating - DC:	30V	Actuator Type:	Rectangular, Button
Color - Actuator/Cap:	White	Illumination Type, Color:	Incandescent, White
Illumination Voltage (Nominal):	28 VAC	Mounting Type:	Panel Mount, Snap-In
Termination Style:	Solder, Quick Connect - 0.110" (2.8mm)	Ingress Protection:	-
Features:	-	Panel Cutout Dimensions:	Rectangular - 22.40mm x 16.20mm

Description

Switch Function: On-On
Color - Actuator/Cap: White
Ingress Protection: -
Features: -
Packaging: Bulk
Voltage Rating - AC: 125V
Circuit: SPDT
Type: Standard, Illuminated
Actuator Type: Rectangular, Button
Voltage Rating - DC: 30V
Mounting Type: Panel Mount, Snap-In
Current Rating: 3A (AC/DC)
Manufacturer: NKK Switches
Termination Style: Solder, Quick Connect - 0.110" (2.8mm)
Panel Cutout Dimensions: Rectangular - 22.40mm x 16.20mm
Series: LB
Illumination Voltage (Nominal): 28 VAC
Illumination Type, Color: Incandescent, White

Parameters:

Technical/Catalog Information	LB16RKW01-28-BJ
Vendor	NKK Switches of America Inc
Category	Switches
Actuator Type	Rectangular Button
Circuit	SPDT
Contact Rating @ Voltage	3A @ 125VAC
Illumination Type, Color	Incandescent, White
Illumination Voltage (Nominal)	28 VAC
Mounting Type	Panel Mount, Snap-In
Switch Function	On-On
Termination Style	Solder, Quick Connect - .110" (2.8mm)
Type	Illuminated
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	LB16RKW01 28 BJ LB16RKW0128BJ
