LB16CGW01-5D24-JD, US $ 12.41-16.13 , NKK Switches, LB16CGW01-5D24-JD DataSheet download, circuit diagram from SeekIC.com

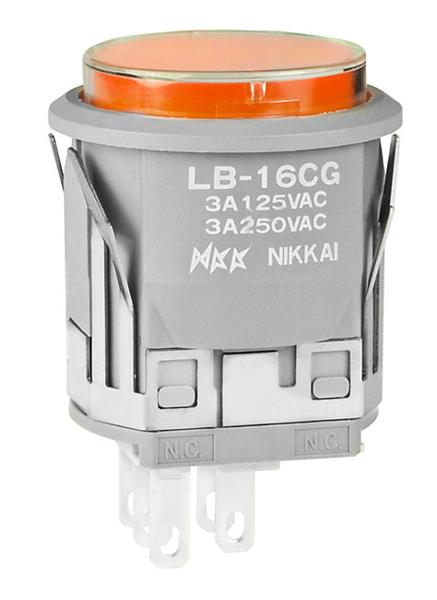

See larger image

SeekIC No. : 002609780 Detail

LB16CGW01-5D24-JD: Pushbutton Switches SPDT 0N 0N

LB16CGW01-5D24-JD Data Sheet

US $ 12.41~16.13 / Piece | Get Latest Price

Part Number:: LB16CGW01-5D24-JD
Mfg:: NKK Switches
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$16.13
$13.96
$13.18
$12.41

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LB1608T100M evaluate
US $.08 - .26 / Piece

Common Mode Inductors (Chokes) INDCTR STD WND 0603 10uH 20%
LB1608T1R0M evaluate
US $.08 - .26 / Piece

Common Mode Inductors (Chokes) INDCTR STD WND 0603 1.0uH 20%
LB1608T2R2M evaluate
US $.08 - .26 / Piece

Common Mode Inductors (Chokes) INDCTR STD WND 0603 2.2uH 20%

Product Details

Quick Details

Contact Form :	SPDT	Switch Function :	ON - ON
Current Rating :	3 A	Voltage Rating AC :	250 V
Mounting Style :	Snap In	Illumination :	Illuminated
Illumination Color :	Amber	Termination Style :	Solder Lug
Contact Plating :	Silver	Actuator :	Round
Flammability Rating :	UL 94 V-0

Description

Voltage Rating DC :
Power Rating :
IP Rating :
Cap Color :
Packaging :
Contact Plating : Silver
Flammability Rating : UL 94 V-0
Contact Form : SPDT
Termination Style : Solder Lug
Actuator : Round
Mounting Style : Snap In
Illumination : Illuminated
Voltage Rating AC : 250 V
Current Rating : 3 A
Switch Function : ON - ON
Illumination Color : Amber

Parameters:

Technical/Catalog Information	LB16CGW01-5D24-JD
Vendor	NKK Switches of America Inc
Category	Switches
Actuator Type	Round Button
Circuit	SPDT
Contact Rating @ Voltage	3A @ 125VAC
Illumination Type, Color	LED, Amber
Illumination Voltage (Nominal)	24 VDC
Mounting Type	Panel Mount, Snap-In
Switch Function	On-On
Termination Style	Solder, Quick Connect - .110" (2.8mm)
Type	Illuminated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LB16CGW01 5D24 JD LB16CGW015D24JD
