Features:

3-phase brushless motor driver.
Withstand voltage: 60 V; output current: 2.5 A.
Current limiter built in.
Low-voltage protector built in.
 Thermal shutdown protector built in.
Hall amplifier with hysteresis built in.
FG output function.
Regulator built in.




Pinout

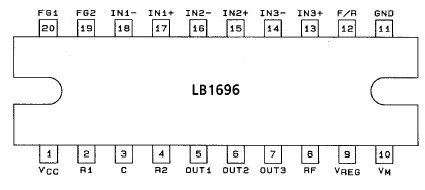

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Maximum Supply voltage
VCC max

10
V

VM max

60
V
Output current
IO

2.5
A
Allowable power dissipation
Pd max1
 Independent IC
3
W
Pd max2
 With arbitrarily large heat sink
20
W
Operating temperature
Topr

20 to +100
°C
Storage temperature
Tstg

55 to +150
°C
