Product Details

Description

Features:

• Three-phase brushless motor drive
• 45-V voltage handling capacity, 2-A output current
• Current limiter circuit
• Low-voltage protection circuit
• Thermal shutdown protection circuit
• Hall amplifiers with hysteresis characteristics
• FG output function

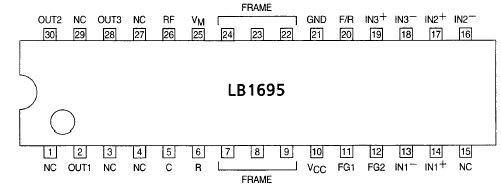

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Supply voltage	V_CC		10	V
Supply voltage	V_M		45	V
Output current	I_O		2.0	A
Allowable power dissipation	Pd max	Mounted on a printed circuit board (114.3 ´ 76.2 ´ 1.6 mm³ glass-epoxy board)	2.5	W
Operating temperature	Topr		20 to +100	°C
Storage temperature	Tstg		55 to +150	°C
