Product Details

Description

Features:

High output current (1 A/ch)
Wide operating voltage range (4 to 36 V)
Inhibit function
Direct drive made possible by TTL
CMOS IC High noise margin

Application

Multi DC motor driver
Bidirectional motor driver
Bipolar stepping motor driver

Pinout

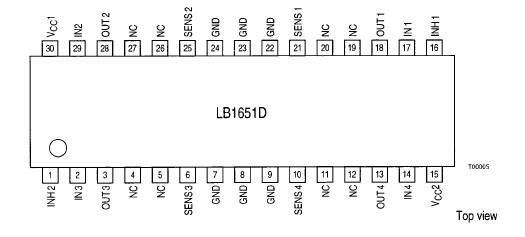

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	V_CC1		36	V
Logic supply voltage	V_CC2		36	V
Input voltage	V_IN		7	V
Inhibit voltage	V_inh		7	V
Peak output current	I_OUT	1 ms non-repetitive	2	A
Allowable power dissipation	P_dmax		3	W
Operating temperature	T_opr		20 to +80	°C
Storage temperature	T_stg		40 to +150	°C
