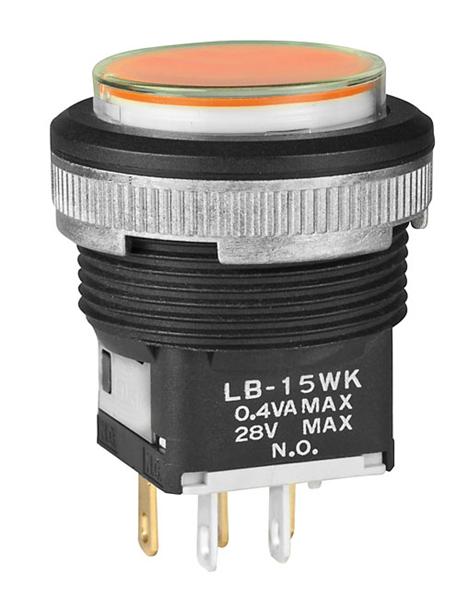

See larger image

SeekIC No. : 002625893 Detail

LB15WKG01-5D-JD: Pushbutton Switches SPDT ON-(ON) AMB Au PNL SEAL BLK HOUSING

LB15WKG01-5D-JD Data Sheet

Get Latest Price

Part Number:: LB15WKG01-5D-JD
Mfg:: NKK Switches
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LB15CGG01 evaluate
US $5.03 - 6.95 / Piece

Pushbutton Switches SPDT ON-(ON) GRAY ROUND BODY ONLY
LB15CGG01-28-GJ evaluate
US $8.02 - 8.77 / Piece

Pushbutton Switches SPDT ON-(ON) RND 12V LAMP BLUE/CLEAR CAP
LB15CGG015CJC evaluate
US $6.73 - 7.9 / Piece

Pushbutton Switches SPDT ON-(ON) RND RED

Product Details

Quick Details

Contact Form :	SPDT	Switch Function :	ON - (ON)
Voltage Rating AC :	28 V	Voltage Rating DC :	28 V
Power Rating :	0.4 Volt-Amp	Mounting Style :	Panel
Illumination :	Illuminated	Illumination Color :	Amber
IP Rating :	IP65	Termination Style :	Solder Lug
Contact Plating :	Gold	Actuator :	Round
Flammability Rating :	UL 94 V-0

Description

Current Rating :
Cap Color :
Packaging :
Voltage Rating DC : 28 V
Flammability Rating : UL 94 V-0
Contact Form : SPDT
Power Rating : 0.4 Volt-Amp
Contact Plating : Gold
Termination Style : Solder Lug
Actuator : Round
Switch Function : ON - (ON)
Mounting Style : Panel
IP Rating : IP65
Illumination : Illuminated
Voltage Rating AC : 28 V
Illumination Color : Amber

Parameters:

Technical/Catalog Information	LB15WKG01-5D-JD
Vendor	NKK Switches of America Inc
Category	Switches
Actuator Type	Round Button
Circuit	SPDT
Contact Rating @ Voltage	0.4VA @ 28VAC/DC
Illumination Type, Color	LED, Amber
Illumination Voltage (Nominal)	2 VDC
Mounting Type	Panel Mount
Switch Function	On-Mom
Termination Style	Solder, Quick Connect - .110" (2.8mm)
Type	Illuminated
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	LB15WKG01 5D JD LB15WKG015DJD
