LB15SKW01-5C05-JC, US $ 10.09-13.44 , NKK Switches, LB15SKW01-5C05-JC DataSheet download, circuit diagram from SeekIC.com

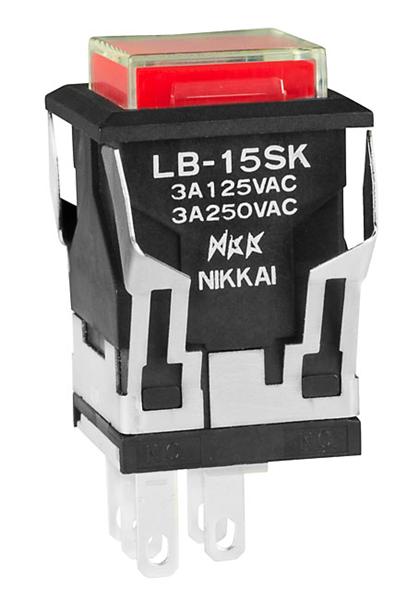

See larger image

SeekIC No. : 002620975 Detail

LB15SKW01-5C05-JC: Pushbutton Switches SPDT ON-(ON) 5V RED

LB15SKW01-5C05-JC Data Sheet

US $ 10.09~13.44 / Piece | Get Latest Price

Part Number:: LB15SKW01-5C05-JC
Mfg:: NKK Switches
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$13.44
$11.14
$10.99
$10.09

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LB15CGG01 evaluate
US $5.03 - 6.95 / Piece

Pushbutton Switches SPDT ON-(ON) GRAY ROUND BODY ONLY
LB15CGG01-28-GJ evaluate
US $8.02 - 8.77 / Piece

Pushbutton Switches SPDT ON-(ON) RND 12V LAMP BLUE/CLEAR CAP
LB15CGG015CJC evaluate
US $6.73 - 7.9 / Piece

Pushbutton Switches SPDT ON-(ON) RND RED

Product Details

Quick Details

Contact Form :	SPDT	Switch Function :	ON - (ON)
Current Rating :	3 A	Voltage Rating AC :	250 V
Mounting Style :	Snap In	Illumination :	Illuminated
Illumination Color :	Red	Termination Style :	Solder Lug
Contact Plating :	Gold	Actuator :	Square
Flammability Rating :	UL 94 V-0

Description

Voltage Rating DC :
Power Rating :
IP Rating :
Cap Color :
Packaging :
Flammability Rating : UL 94 V-0
Contact Form : SPDT
Contact Plating : Gold
Termination Style : Solder Lug
Switch Function : ON - (ON)
Mounting Style : Snap In
Illumination : Illuminated
Voltage Rating AC : 250 V
Illumination Color : Red
Actuator : Square
Current Rating : 3 A

Parameters:

Technical/Catalog Information	LB15SKW01-5C05-JC
Vendor	NKK Switches of America Inc
Category	Switches
Actuator Type	Square Button
Circuit	SPDT
Contact Rating @ Voltage	3A @ 125VAC
Illumination Type, Color	LED, Red
Illumination Voltage (Nominal)	5 VDC
Mounting Type	Panel Mount, Snap-In
Switch Function	On-Mom
Termination Style	Solder, Quick Connect - .110" (2.8mm)
Type	Illuminated
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	LB15SKW01 5C05 JC LB15SKW015C05JC
