Features:

· Bar-shaped display of input level by means of 12 LEDs
· High-order 5 dots with peak hold
· Built-in oscillator for peak hold reset. Requires 1 pce. each of external C, R. Uses either oscillator at the time of stereo operation. Capable of also resetting manually.
· Capable of constant-current driving low-order 7 dots (green LED). Constant-current value variable with an external
resistor
· Lower current drain available by connecting green LEDs in series
· Built-in input amplifier
· Requires no other light-up level adjustment than adjustment for 0 dB. D1 error: within ±3 dB of 20 dB
· Supply voltage range : 10 to 16 V

Pinout

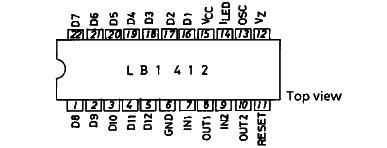

Connection Diagram

Specifications

Parameter	Symbol	Pin No.	Conditions	Ratings	Unit
Maximum supply voltage	V_CC max	15		−0.3to+18	V
Output current	I_OL	1to5	D8 to D12,output on	30	mA
Allowable power dissipation	P_d max		Ta = 60°C	650	mW
Operating temperature	Topr			−30to+75	°C
Storage temperature	Tstg			−40to+125	°C
