LB1409

Features: . Display Nine red or green LEDs display the input level in the shape of a bar.. Input amplifier Wide application is available owing to built-in DC amplifier whose gain is variable with external resistors.. Comparator level Setting is made by steps of 3 dB as follows. 18 dB, 15 dB, 12 dB...

product image

LB1409 Picture
See larger image
SeekIC No. : 004391031 Detail

LB1409: Features: . Display Nine red or green LEDs display the input level in the shape of a bar.. Input amplifier Wide application is available owing to built-in DC amplifier whose gain is variable with ex...

LB1409 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LB1409
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

. Display
  Nine red or green LEDs display the input level in the shape of a bar.
. Input amplifier
  Wide application is available owing to built-in DC amplifier
  whose gain is variable with external resistors.
. Comparator level
  Setting is made by steps of 3 dB as follows.
  18 dB, 15 dB, 12 dB, 9 dB, 6 dB, 3 dB, 0 dB,+3 dB, +6 dB
. Supply voltage
  The recommended supply voltage range is so wide as 5.5 V to 16 V.(If pin Vref 2 is used, 7 V to 16 V.)
. Reference voltage
  Constant voltage output is available with external transistor owing to pin Vref 2 = 5 V.


Application

. AC level meters such as VU meters
. DC level meters such as signal meters.


Pinout

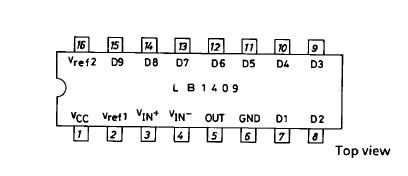

Connection Diagram


Specifications

Parameter Symbol Conditions
Ratings
Unit
Maximum supply voltage VCC max Pin 1
−0.3 to +18
V
Input voltage VIN Pin 3,4
−0.3 to VCC
V
D1 to D9 output voltage VOUT (D) D1 to D9 off
−0.3 to +18
V
D1 to D9 output current IOL (D) Pin 7 to 15, D1 to D9 on
+30
mA
First reference flow-out current Iref (1) Pin 2
−1 to 0
mA
Second reference flow-out current Iref (2) Pin 16
−6 to 0
mA
VOUT supply voltage VOUT Pin 5
−0.3 to +6
V
Allowable power dissipation Pd max Ta = 55°C
500
mW
Operating temperature Topr
−10 to +60
Storage temperature Tstg
−40 to +125
