Product Details

Description

Features:

• Current linear drive
• Control V type amplifier
• Separate power supply for output upper side bias circuit allows low output saturation by boosting this power supply only (useful for 5V power supply types).
• Upper side current detection technique loses loss voltage of current detection resistor. Voltage drop caused by this resistor reduces internal power dissipation of IC.
• Built-in short braking circuit
• Built-in reverse blocking circuit
• Hall FG output
• Built-in S/S function
• Built-in current limiter circuit (selectable, 2 steps)
• Built-in Hall power supply
• Built-in thermal shutdown circuit
• Supports 3.3V DSP

Pinout

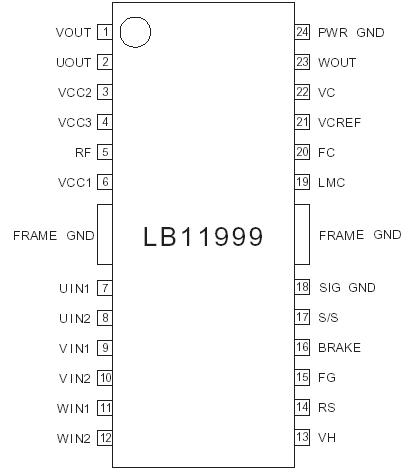

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Supply voltage 1	V_CC1max		7.0	V
Supply voltage 2	V_CC2 max		14.4	V
Maximum power supply voltage 3	V_CC3max		14.4	V
Applied output voltage	V_Omax	Power supply for output stage	14.4	V
Maximum applied intput voltage	Vi_max		V_CC1	V
Maximum output current	I_{O max}		1.3	A
Allowable power dissipation	Pdmax	*With specified substrate	0.8 (*1.9)	W
Operating temperature	Topr		20 to +75	°C
Storage temperature	Tstg		55 to +150	°C
