LB11997H

Features: • Current linear drive• Control V type amplifier• Separate power supply for output upper side bias circuit allows low output saturation by boosting this power supply only (useful for 5V power supply types).• Upper side current detection technique reduces loss volt...

product image

LB11997H Picture
See larger image
SeekIC No. : 004391000 Detail

LB11997H: Features: • Current linear drive• Control V type amplifier• Separate power supply for output upper side bias circuit allows low output saturation by boosting this power supply only...

LB11997H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LB11997H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Current linear drive
• Control V type amplifier
• Separate power supply for output upper side bias circuit allows low output saturation by boosting this power supply only (useful for 5V power supply types).
• Upper side current detection technique reduces loss voltage of current detection resistor. Voltage drop caused by this resistor reduces internal power dissipation of IC.
• Built-in short braking circuit
• Built-in reverse blocking circuit
• Hall FG output
• Built-in S/S function
• Built-in current limiter circuit (selectable, 2 steps)
• Built-in Hall power supply
• Built-in thermal shutdown circuit
• Supports 3.3V DSP


Pinout

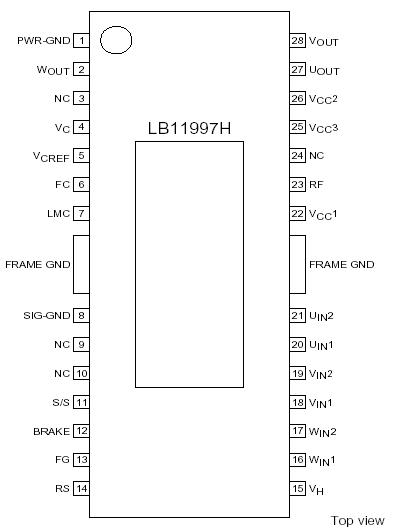

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Maximum power supply voltage VCC1 max   7.0 V
VCC2 max   14.4 V
VCC3 max   14.4
Applied output voltage Vo max   14.4 V
Applied intput voltage VIN max   VCC1
Output current IO max   1.3 A
Allowable power dissipation Pdmax   0.8
 W
Operating temperature Topr   20 to +75 °C
Storage temperature Tstg   55 to +150 °C



Description

The LB11997H is a 3-phase brushless motor driver especially suited for CD-ROM spindle motor drives.
