Product Details

Description

Pinout

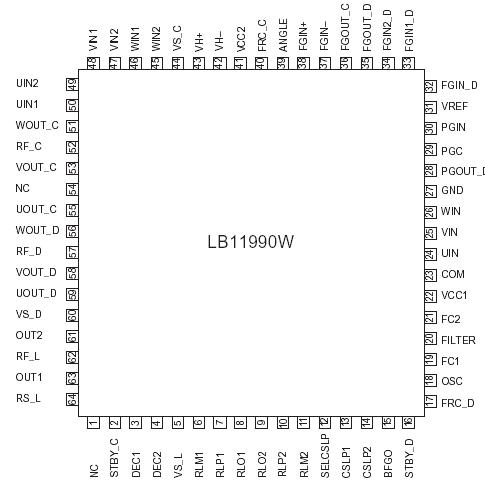

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage 1	V_CC1 max		7	V
Maximum supply voltage 2	VCC2 max		8.5	V
Maximum supply voltage 3	VS_C max	Capstan motor driver	7.0	v
Maximum supply voltage 4	VS_D max	Drum motor driver	7.0	v
Maximum supply voltage 5	VS_L max	Loading motor driver	7.0	V
Applied output voltage	Vo max		8.0	V
Applied intput voltage	VI1 max	Control circuits	0.3 to V_CC1 + 0.3	V
Applied intput voltage	VI2 max	U, V, W, COM	8.0	V
Capstan motor output current	IOC max		1.0	A
Drum motor output current	IOD max		1.0	A
Loading motor output current	IOL max		0.6	A
Allowable power dissipation	Pdmax	IC only	0.6	W
Operating temperature	Topr		20 to +75	°C
Storage temperature	Tstg		55 to +150	°C
