Product Details

Description

Features:

• Three-phase current linear drive with switching between full-wave and half-wave operations
• Torque ripple correction circuit
• Current limiter circuit
• Upper and lower sides output stage saturation prevention circuits
• Short brake circuit
• FG amplifier
• Thermal shutdown circuit

Pinout

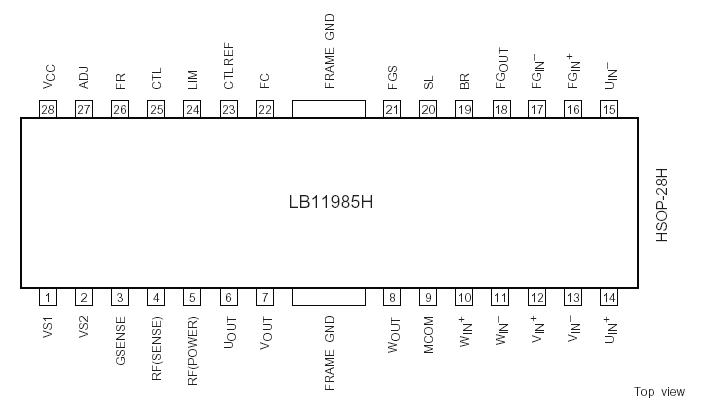

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	V_CC max		6	V
Maximum supply voltage	V_Smax		15.5
Maximum output current	I_Omax		1.5	V
Maximum output voltage	V_Omax	Maximum per channel is 400 mA.	800	V
Allowable power dissipation	Pdmax	Independant IC	0.8	w
Allowable power dissipation	Pdmax	76.1114.3 1.6 mm³: With glass epoxy	2.0	w
Operating temperature	Topr		20 to +75	°C
Storage temperature	Tstg		55 to +150	°C
